Product range
Benchtop manual presses for routine laboratory work, fully automatic machines with touchscreen control for high-throughput workflows, and XRF-dedicated presses with built-in sample moulds and automatic demoulding. Every model accepts the full Imperial die set range.
Manual, automatic and XRF-dedicated pellet presses from 2 to 60 tons for FTIR and XRF sample preparation.
Precision manual hydraulic presses for FTIR and XRF sample preparation, with manual or digital gauges, optional safety guards, and configurations up to 60 tons.
Compact presses for KBr pellet preparation in transmission FTIR, where a small footprint and low mass matter.
Automatic hydraulic presses with touchscreen control and programmable pressure, dwell and release cycles for high-throughput sample preparation.
Purpose-built automatic XRF presses with built-in sample moulds, automatic pressure conversion and automatic pellet ejection.
At a glance
Every published press figure in one table. Open a product page for the complete specification and accessory options.
| Configuration | 2 Pillar Press with Analog Gauge |
|---|---|
| Family | manual |
| Pressure range | 0–2 Ton |
| Piston diameter | Ø32 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 30 mm (T) max. |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø80 mm (D) |
| Number of columns | Two |
| Working space | 85 × 120 mm (M × N) |
| Dimension | 210 × 155 × 360 mm (W × L × H) |
| Weight | 20 kg |
| Configuration | 2 Pillar Press with Analog Gauge |
|---|---|
| Family | manual |
| Pressure range | 0–3 T |
| Piston diameter | Ø50 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 30 mm (T) max. |
| Protective cover | Plexiglass |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø80 mm (D) |
| Number of columns | Two |
| Working space | 90 × 125 mm (M × N) |
| Dimension | 210 × 150 × 360 mm (W × L × H) |
| Weight | 20 kg |
| Configuration | 2 Pillar Press with Analog Gauge |
|---|---|
| Family | manual |
| Pressure range | 0–5 T |
| Piston diameter | Ø50 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 30 mm (T) max. |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø80 mm (D) |
| Number of columns | Two |
| Working space | 90 × 125 mm (M × N) |
| Dimension | 210 × 150 × 360 mm (W × L × H) |
| Weight | 20 kg |
| Configuration | 2 Pillar Press with Analog Gauge |
|---|---|
| Family | manual |
| Pressure range | 0–12 T |
| Piston diameter | Ø70 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 30 mm (T) max. |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø80 mm (D) |
| Number of columns | Two |
| Working space | 96 × 130 mm (M × N) |
| Dimension | 225 × 155 × 380 mm (W × L × H) |
| Weight | 28 kg |
| Configuration | 2 Pillar Press with Analog Gauge |
|---|---|
| Family | manual |
| Pressure range | 0–15 T (0–30 MPa) |
| Piston diameter | Ø80 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 30 mm (T) max. |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø90 mm (D) |
| Number of columns | Two |
| Working space | 140 × 160 mm (M × N) |
| Dimension | 270 × 200 × 440 mm (W × L × H) |
| Weight | 55 kg |

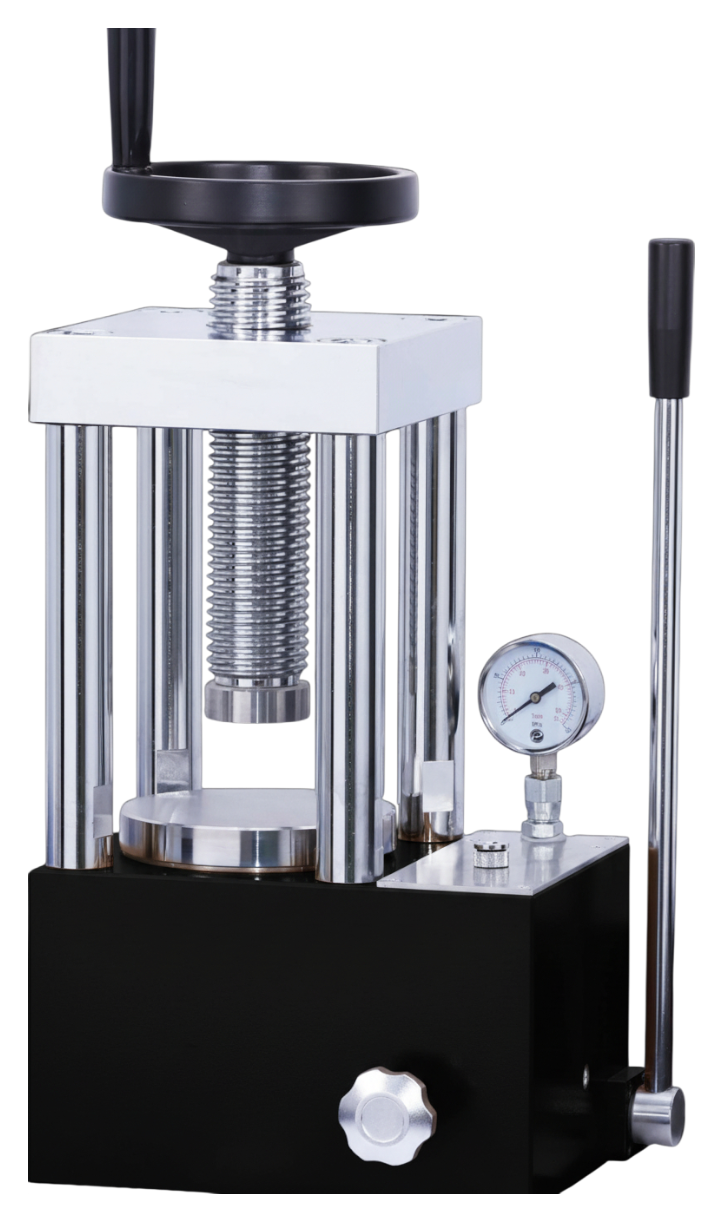

| Configuration | 4 Pillar Press with Analog Gauge |
|---|---|
| Family | manual |
| Pressure range | 0–15 T (0–30 MPa) |
| Piston diameter | Ø80 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 30 mm (T) max. |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø90 mm (D) |
| Number of columns | Four |
| Working space | 80 × 140 mm (M × N) |
| Dimension | 250 × 175 × 405 mm (W × L × H) |
| Weight | 40 kg |

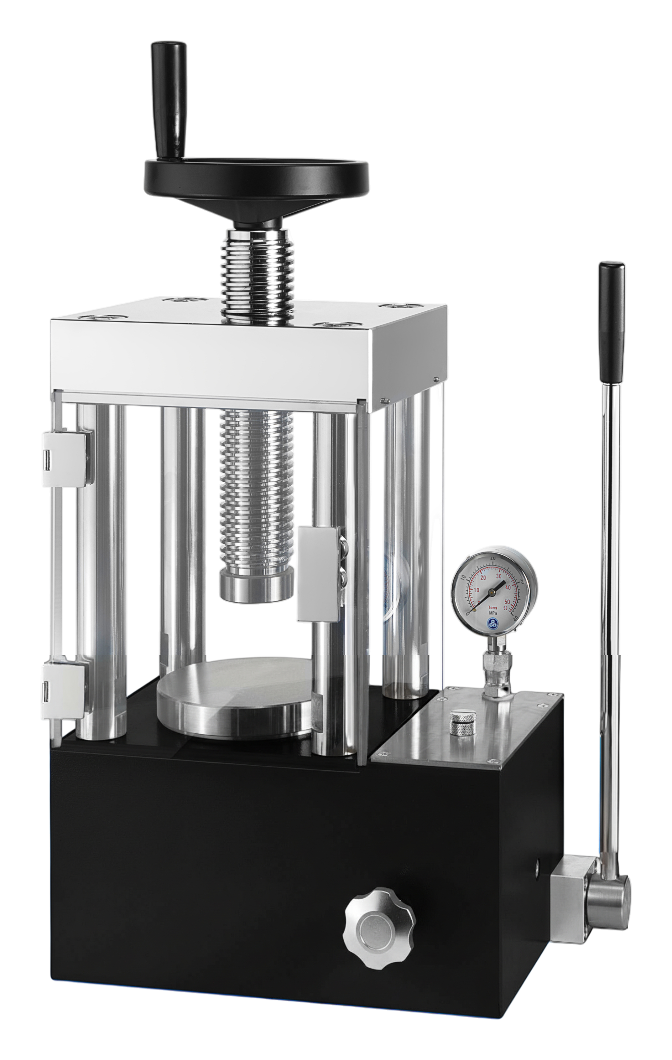

| Configuration | 4 Pillar Press with Safety Guard |
|---|---|
| Family | manual |
| Pressure range | 0–15 T (0–30 MPa) |
| Piston diameter | Ø80 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 30 mm (T) max. |
| Protective cover | Plexiglass |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø90 mm (D) |
| Number of columns | Four |
| Working space | 80 × 140 mm (M × N) |
| Dimension | 260 × 175 × 405 mm (W × L × H) |
| Weight | 42 kg |
| Configuration | 4 Pillar Press with Analog Gauge |
|---|---|
| Family | manual |
| Pressure range | 0–24 T (0–34 MPa) |
| Piston diameter | Ø95 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 30 mm (T) max. |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø105 mm (D) |
| Number of columns | Four |
| Working space | 80 × 150 mm (M × N) |
| Dimension | 250 × 175 × 415 mm (W × L × H) |
| Weight | 42 kg |
| Configuration | 4 Pillar Press with Safety Guard |
|---|---|
| Family | manual |
| Pressure range | 0–24 T (0–34 MPa) |
| Piston diameter | Ø95 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 30 mm (T) max. |
| Protective cover | Plexiglass |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø105 mm (D) |
| Number of columns | Four |
| Working space | 112 × 160 mm (M × N) |
| Dimension | 305 × 200 × 440 mm (W × L × H) |
| Weight | 65 kg |
| Configuration | 4 Pillar Press with Safety Guard |
|---|---|
| Family | manual |
| Pressure range | 0–30 T (0–31.5 MPa) |
| Piston diameter | Ø120 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 40 mm (T) max. |
| Protective cover | Plexiglass |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø120 mm (D) |
| Number of columns | Four |
| Working space | 112 × 160 mm (M × N) |
| Dimension | 305 × 200 × 440 mm (W × L × H) |
| Weight | 65 kg |
| Configuration | 4 Pillar Press with Analog Gauge |
|---|---|
| Family | manual |
| Pressure range | 0–40 T |
| Piston diameter | Ø130 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 50 mm (T) max. |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø140 mm (D) |
| Number of columns | Four |
| Working space | 106 × 185 mm (M × N) |
| Dimension | 295 × 215 × 500 mm (W × L × H) |
| Weight | 75 kg |
| Configuration | 4 Pillar Press with Safety Guard |
|---|---|
| Family | manual |
| Pressure range | 0–40 T (0–30 MPa) |
| Piston diameter | Ø140 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 40 mm (T) max. |
| Protective cover | Plexiglass |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø140 mm (D) |
| Number of columns | Four |
| Working space | 136 × 180 mm (M × N) |
| Dimension | 355 × 220 × 510 mm (W × L × H) |
| Weight | 90 kg |
| Configuration | 4 Pillar Press with Safety Guard |
|---|---|
| Family | manual |
| Pressure range | 0–60 T (0–34 MPa) |
| Piston diameter | Ø150 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 50 mm (T) max. |
| Protective cover | Plexiglass |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø160 mm (D) |
| Number of columns | Four |
| Working space | 185 × 250 mm (M × N) |
| Dimension | 405 × 240 × 565 mm (W × L × H) |
| Weight | 120 kg |
| Configuration | Mini KBr Press |
|---|---|
| Family | mini |
| Pressure range | 0–2 T (30 MPa) |
| Piston diameter | 28 mm (d) |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø45 mm (D) |
| Number of columns | Two |
| Working space | 54 × 55 mm (M × N) |
| Dimension | 100 × 220 × 220 mm (W × L × H) |
| Weight | 4.8 kg |
| Configuration | Touchscreen panel |
|---|---|
| Family | automatic |
| Pressure range | 0–12 T |
| Pressure display accuracy | 0.01 Tons |
| Display panel | 5" touch screen panel |
| Metal button / key | Silver-plated contacts, with a service life of over 100,000 cycles. |
| Pressure safety | Automatic pressure overload protection. |
| Limit switch | The oil cylinder automatically releases pressure when it reaches the limit height. |
| Cylinder stroke | 30 mm (T) |
| Curve graph | Displays each operation curve and supports export to USB as an Excel file |
| Program control | Up to 18 segments of program control |
| Speed adjustment | Pressure increasing speed is adjustable |
| Remote control | A computer is required to analyze, compare, modify, and export data. |
| Working space | 110 × 140 mm (M × N) |
| Voltage | 110 V / 220 V |
| Power | 500 W |
| Configuration | Touchscreen panel |
|---|---|
| Family | automatic |
| Pressure range | 0.01–20 T |
| Pressure display accuracy | 0.01 Tons |
| Display panel | 5" touch screen panel |
| Metal button / key | Silver-plated contacts, with a service life of over 100,000 cycles. |
| Pressure safety | Automatic pressure overload protection. |
| Limit switch | The oil cylinder automatically releases pressure when it reaches the limit height. |
| Cylinder stroke | 40 mm (T) |
| Curve graph | Displays each operation curve and supports export to USB as an Excel file |
| Program control | Up to 18 segments of program control |
| Speed adjustment | Pressure increasing speed is adjustable |
| Remote control | A computer is required to analyze, compare, modify, and export data. |
| Working space | 140 × 160 mm (M × N) |
| Voltage | 110 V / 220 V |
| Power | 500 W |
| Configuration | Touchscreen panel |
|---|---|
| Family | automatic |
| Pressure range | 0.01–30 T |
| Pressure display accuracy | 0.01 Tons |
| Display panel | 5" touch screen panel |
| Metal button / key | Silver-plated contacts, with a service life of over 100,000 cycles. |
| Pressure safety | Automatic pressure overload protection. |
| Limit switch | The oil cylinder automatically releases pressure when it reaches the limit height. |
| Cylinder stroke | 40 mm (T) |
| Curve graph | Displays each operation curve and supports export to USB as an Excel file |
| Program control | Up to 18 segments of program control |
| Speed adjustment | Pressure increasing speed is adjustable |
| Remote control | A computer is required to analyze, compare, modify, and export data. |
| Working space | 140 × 160 mm (M × N) |
| Voltage | 110 V / 220 V |
| Power | 500 W |
| Configuration | Touchscreen panel |
|---|---|
| Family | automatic |
| Pressure range | 0.01–40 T |
| Pressure display accuracy | 0.01 Tons |
| Display panel | 5" touch screen panel |
| Metal button / key | Silver-plated contacts, with a service life of over 100,000 cycles. |
| Pressure safety | Automatic pressure overload protection. |
| Limit switch | The oil cylinder automatically releases pressure when it reaches the limit height. |
| Cylinder stroke | 40 mm (T) |
| Curve graph | Displays each operation curve and supports export to USB as an Excel file |
| Program control | Up to 18 segments of program control |
| Speed adjustment | Pressure increasing speed is adjustable |
| Remote control | A computer is required to analyze, compare, modify, and export data. |
| Working space | 175 × 180 mm (M × N) |
| Voltage | 110 V / 220 V |
| Power | 500 W |
| Configuration | Touchscreen panel |
|---|---|
| Family | automatic |
| Pressure range | 0.01–60 T |
| Pressure display accuracy | 0.01 Tons |
| Display panel | 5" touch screen panel |
| Metal button / key | Silver-plated contacts, with a service life of over 100,000 cycles. |
| Pressure safety | Automatic pressure overload protection. |
| Limit switch | The oil cylinder automatically releases pressure when it reaches the limit height. |
| Cylinder stroke | 50 mm (T) |
| Curve graph | Displays each operation curve and supports export to USB as an Excel file |
| Program control | Up to 18 segments of program control |
| Speed adjustment | Pressure increasing speed is adjustable |
| Remote control | A computer is required to analyze, compare, modify, and export data. |
| Working space | 185 × 200 mm (M × N) |
| Voltage | 110 V / 220 V |
| Power | 500 W |
| Configuration | Automatic Pellet Ejection |
|---|---|
| Family | xrf |
| Pressure range | 0.01–30 T |
| Pressure display accuracy | 0.01 Tons |
| Display panel | 7" touch screen panel |
| Pressurization process | 20-stage program pressurization, with pressure graph display |
| Pressure conversion | Automatically calculates the pressure the sample is subjected to based on the sample size. |
| Metal button / key | Silver-plated contacts, with a service life of over 100,000 cycles. |
| Mold size | 40 mm or 32 mm built-in mould |
| Mold type | Boric acid / steel ring / plastic ring / aluminium cup |
| Mold material | Stainless steel 440C |
| Demoulding method | The upper plate cantilever structure automatically demoulds for easier operation. |
| Pressure safety | Automatic pressure overload protection |
| Curve graph | Displays each operation curve and supports export to USB as an Excel file |
| Remote control | A computer is required to analyze, compare, modify, and export data. |
| Voltage | 110 V / 220 V |
| Power | 500 W |
| Configuration | Automatic Pellet Ejection |
|---|---|
| Family | xrf |
| Pressure range | 0.01–40 T |
| Pressure display accuracy | 0.01 Tons |
| Display panel | 7" touch screen panel |
| Pressurization process | 20-stage program pressurization, with pressure graph display |
| Pressure conversion | Automatically calculates the pressure the sample is subjected to based on the sample size. |
| Metal button / key | Silver-plated contacts, with a service life of over 100,000 cycles. |
| Mold size | 40 mm or 32 mm built-in mould |
| Mold type | Boric acid / steel ring / plastic ring / aluminium cup |
| Mold material | Stainless steel 440C |
| Demoulding method | The upper plate cantilever structure automatically demoulds for easier operation. |
| Pressure safety | Automatic pressure overload protection |
| Curve graph | Displays each operation curve and supports export to USB as an Excel file |
| Remote control | A computer is required to analyze, compare, modify, and export data. |
| Voltage | 110 V / 220 V |
| Power | 500 W |
| Configuration | Automatic Pellet Ejection |
|---|---|
| Family | xrf |
| Pressure range | 0.01–60 T |
| Pressure display accuracy | 0.01 Tons |
| Display panel | 7" touch screen panel |
| Pressurization process | 20-stage program pressurization, with pressure graph display |
| Pressure conversion | Automatically calculates the pressure the sample is subjected to based on the sample size. |
| Metal button / key | Silver-plated contacts, with a service life of over 100,000 cycles. |
| Mold size | 40 mm or 32 mm built-in mould |
| Mold type | Boric acid / steel ring / plastic ring / aluminium cup |
| Mold material | Stainless steel 440C |
| Demoulding method | The upper plate cantilever structure automatically demoulds for easier operation. |
| Pressure safety | Automatic pressure overload protection |
| Curve graph | Displays each operation curve and supports export to USB as an Excel file |
| Remote control | A computer is required to analyze, compare, modify, and export data. |
| Voltage | 110 V / 220 V |
| Power | 500 W |
Related ranges
Circular, square, splitable, hardened alloy, FTIR and XRF die sets in a wide size range.
Thermal-assisted compaction die sets rated to 300 °C and 500 °C, supplied with a temperature controller.
Optical-grade diamond components, NV-centre materials and diamond anvil cells for advanced research and instrumentation.
