A compact, high-strength laboratory press for producing consistent, high-density pellets for FTIR, XRF, IR spectroscopy and general powder compaction.
| Configuration | 4 Pillar Press with Analog Gauge |
|---|---|
| Family | manual |
| Pressure range | 0–40 T |
| Piston diameter | Ø130 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 50 mm (T) max. |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø140 mm (D) |
| Number of columns | Four |
| Working space | 106 × 185 mm (M × N) |
| Dimension | 295 × 215 × 500 mm (W × L × H) |
| Weight | 75 kg |
Overview
A compact, high-strength laboratory press engineered for producing high-quality pellets for FTIR, XRF, IR spectroscopy, materials analysis, and general powder compaction. Designed for durability and precision, this press delivers reliable, repeatable pressure ideal for both research and industrial laboratory environments. Built with a rigid multi-column structure and a stable hydraulic system, it provides excellent pressure uniformity, making it suitable for KBr pellets, XRF sample pellets, ceramic powders, geological materials, catalysts, battery powders, pharmaceuticals, and more. CE compliant. Works with all Imperial die sets — circular, splitable, heated (up to 300–500 °C), and square.
Technical data
Values as published for this model. Where a figure needs confirmation against the current datasheet it is marked accordingly.
| Configuration | 4 Pillar Press with Analog Gauge |
|---|---|
| Family | manual |
| Pressure range | 0–40 T |
| Piston diameter | Ø130 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Lifting height of cylinder | 50 mm (T) max. |
| Pressure stability | ≤ 1 MPa / 10 min |
| Workbench diameter | Ø140 mm (D) |
| Number of columns | Four |
| Working space | 106 × 185 mm (M × N) |
| Dimension | 295 × 215 × 500 mm (W × L × H) |
| Weight | 75 kg |
We supply a user specification sheet for every model on request, together with die set compatibility and accessory options.
Compatible accessories
Every model in the range accepts circular, square, splitable and heatable Imperial die sets.
Standard (circular)
Designed for producing high-quality pressed pellets for laboratory analysis, including FTIR (such as KBr pellets) and XRF applications. With precision-engineered components and mirror-polished pressing surfaces, they ensure smooth, uniform pellets and reliable analytical results. Available in diameters from 2 mm to 150 mm.

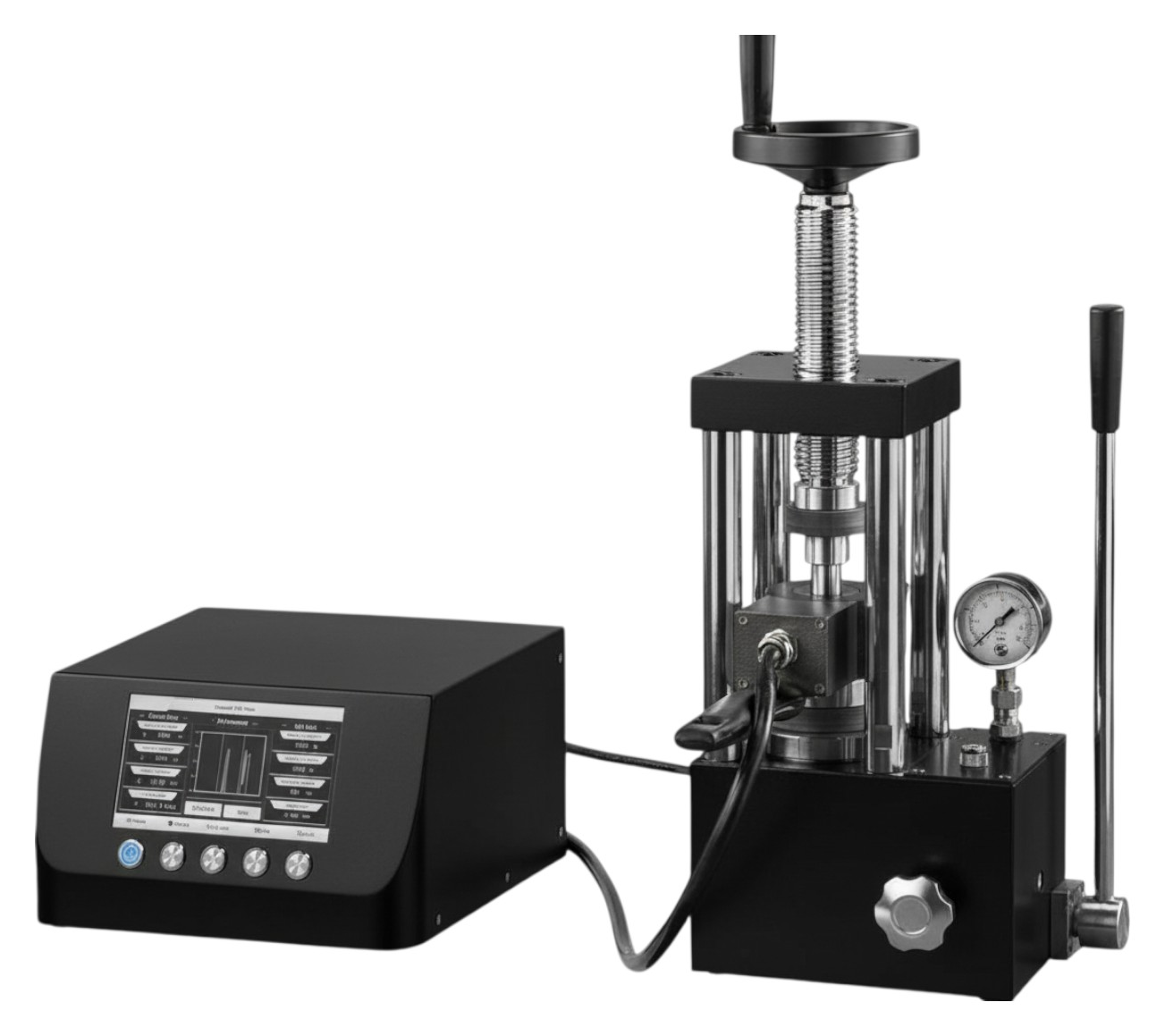

300 °C – 500 °C, with temperature controller
Designed for pellet preparation under controlled heating conditions, where temperature plays a critical role in pellet quality. Supplied with an integrated temperature controller, they enable precise heating during pressing to enhance pellet uniformity and bonding.
Fast demoulding and non-circular geometries
Splitable die sets give fast, easy demoulding for complex or delicate pellets. Square die sets support non-circular sample geometries required in specialised testing.

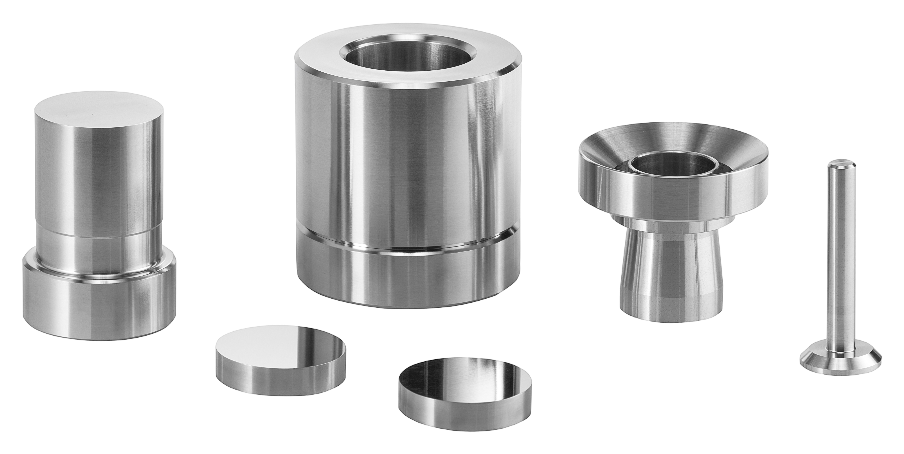

40 mm, with steel ring
Ring die sets provide precise and uniform pellet formation for FTIR and XRF sample preparation, holding the sample in a defined steel ring during compaction.
